All Proposed Category 7 requirements as per ANSI/TIA, ISO/IEC, and CENELEC EN Standards.
ANSI/TIA-568-C.2
ISO/IEC 2nd Edition 11801 CLASS F
CENELEC EN 50173-1
CENELEC 2nd Edition EN 50288-4-2, IEC 61156-6 for patch cable
Flame Retardancy is verified according to IEC 60332-1-2.
We implemented RoHS compliance for the requirement of European Union issued Directive 2002/95/EC

Features:
•  Guaranteed performance to 600MHz

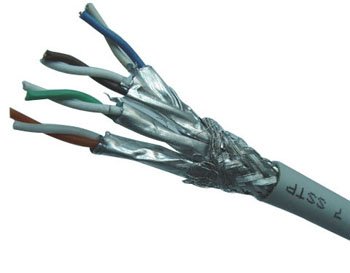

•  Screening by individual foil per pair and by overall braid for best EMC performance
•  Supports 10 Gigabit Ethernet
•  Stranded 26 AWG cable
•  LSOH or PVC jacket available
•  RoHS compliant

Approval:
• UL/cUL listed.
• 3P Certified ANSI/TIA-568-C.2 Category 7 Testing Performance requirements.


Applications:
• 10GBASE-T Ethernet
• 1000BASE-Tx Gigabit Ethernet
• 10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3)
• 100 VG - AnyLAN (IEEE802.12), 155/622 Mbps ATM
• Voice, T1, ISDN

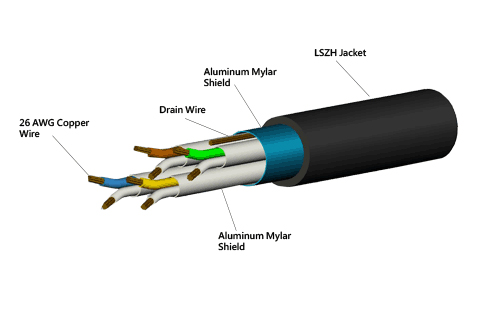

Configuration:



 Ordering Information:

Part Number

Description

YLC-7PP04-AX1-XXX2XX3

Category 7 PIMF Patch Cable, 26AWG×4P, PVC

YLC-7PP04-CX1-XXX2XX3

Category 7 PIMF Patch Cable,26AWG×4P, LS0H

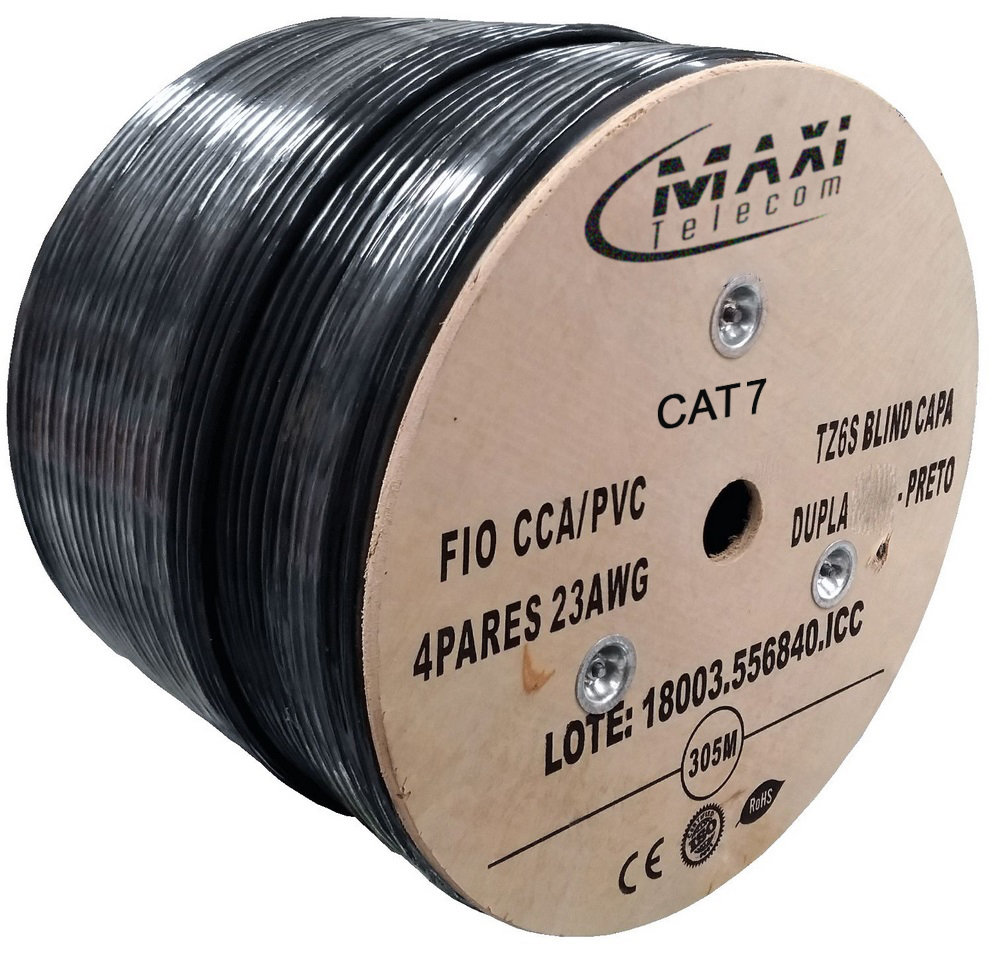

Use (X1) to specify packing: R= Reel ,N=w/o Reel
Use (XXX2) to specify length: 305=305m ,500=500m, 610=610m
Use (XX3) to specify color: WH=White ,RD=Red, YL=Yellow ,BL=Blue ,BK=Black ,GY=Gray
Others: Available on Requests.
